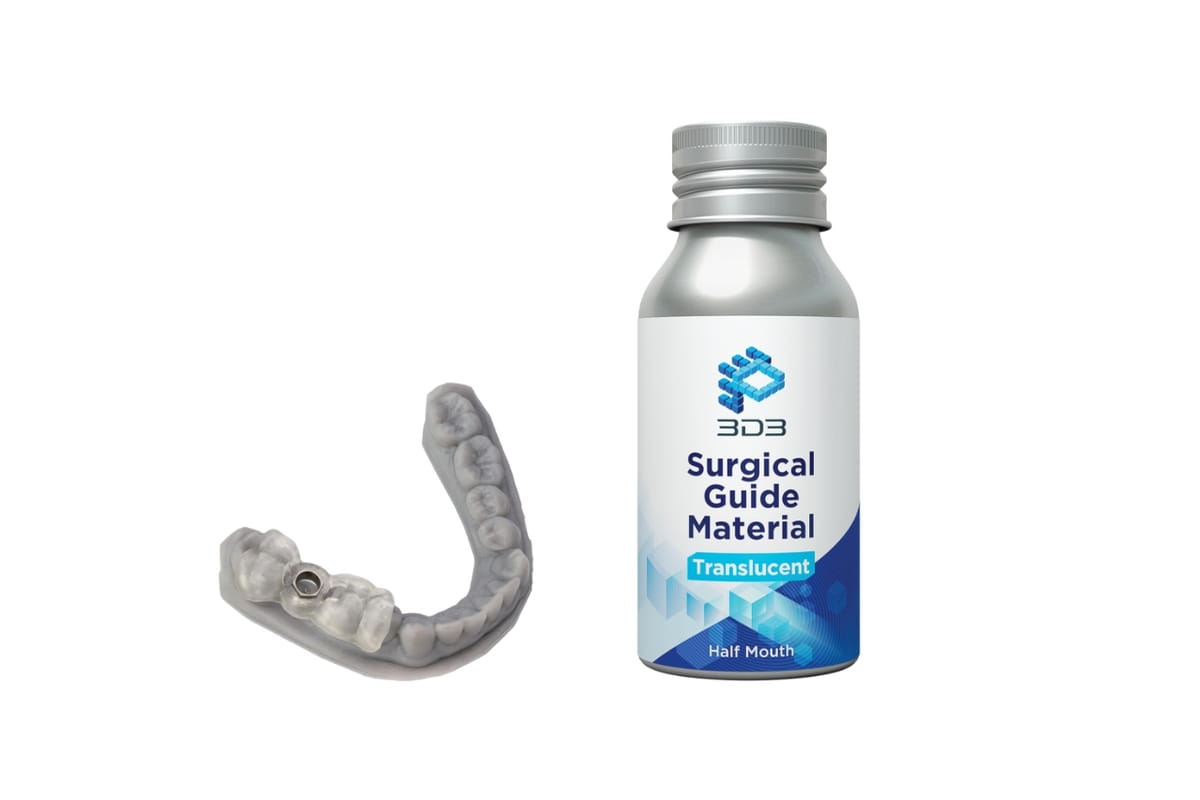

3D3 Surgical Guide Material

3D3 surgical guide material is formulated to create translucent, strong and stable appliance for guided implant surgery.

Features

• Higher drilling accuracy
• Less room for error
• Shortens surgery time
• High strength
• High stability
• Good transparency with clear view
• Enables fast and accurate printing

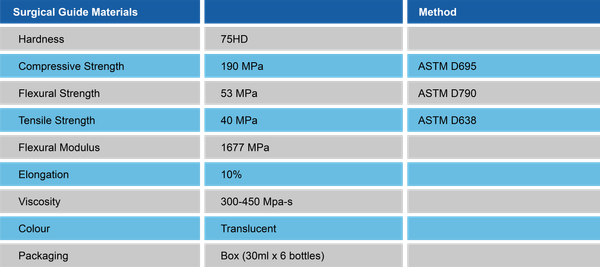

Material Properties

[Material properties chart image present]

Application

• Shake well before pouring from the bottle into the 3D printer resin tank.
• Before printing, determine printing parameter according to the printer used.
• After printing completion, rinse the printed object with 95% isopropyl alcohol to remove excess resin on the surface. Recommended to use with ultrasonic bath for thorough cleaning (duration: 5 mins).
• After cleaning, dry the printed object with air blower or paper towel, then proceed with post-curing of the object. Adjust the light curing intensity and duration according to the post-curing system being used.

Precautions

• Keep the room well-ventilated
• Wear all necessary PPE while handling the material, including goggles, nitril gloves and protective clothing
• Gloves should be discarded and replaced immediately if there is any indication of degradation
• Always clean the build platform and resin tray after use
• Avoid recycling of used material as it may affect the next printing cycle
• Avoid using the 3D3 Surgical guide material for other appliances
• The product was developed and produced in compliance with the ISO 13485:2016 Standard.
