Conical Ti-Base, Non Rotational, G0.0mm, S compatible with BioHorizons® Internal P3.5 G015003

MATERIAL

The Gt-Medical Conical Ti-Base is made of Titanium Grade 5 with a mirror micro-polished finish to prevent bacterial plaque adhesion.

CONNECTION

The connection of the Conical Ti-Base to the implant can be made using Gt-Medical's Universal Screw for straight channels, or using the DINALOCK Universal Screw for angled channels. On the other hand, the connection of the Ti-Base to the prosthetic structure is carried out by cementation.

GEOMETRY

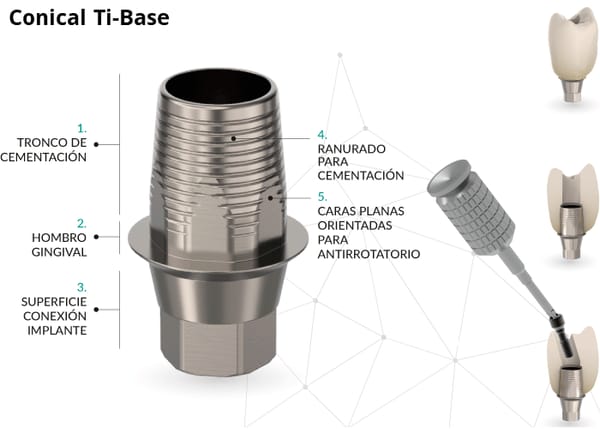

The geometry of the Conical Ti-Base is divided into 4 parts:

• Connection surface to the implant, rigorously designed with the original measurements of the corresponding implant, offering machining tolerances never exceeding +/- 0.01mm.
• Cementation trunk, with a grooved cylindrical surface to facilitate cement adhesion. It is available in a cementation height of "S" corresponding to 3.8mm and for cases where the implant is deeply submerged, a cementation height of "L" is available, with a length of 5.3mm. It presents six flat faces that ensure anti-rotation of the Conical Ti-Base within the prosthetic structure. They are angularly oriented with the implant connection and with the flat face of the scan body.
• Gingival shoulder, with a height of approximately 0.5mm and a micro-polished surface finish that facilitates the peripheral growth of the gingival mucosa. For cases where the implant is deeply submerged, other gingival heights between 0 and 4.5mm are available.
• Screw seat, made with an angular tolerance of +/- 0.5 degrees, preventing micro-movements that could cause possible screw loosening.

CAD-CAM

Using the Gt-Medical Ti-Base implant library, the prosthetic structure can be digitally designed, using straight or angled screw channels.
