CORiTEC 150i series

• 10-fold automatic tool changer
• 100.000 rpm / 860 W high-frequency spindle
• Automated cleaning function
• Modern, closed mono-block cast body for highest stability and precision
• Integrated HD camera for online monitoring
• No external PC required
• Minimal footprint
• Minimum external compressed air requirement: only 3 bar required
• High precision due to integrated temperature compensation

Applications

• Full denture
• Crown, bridge
• Inlay, onlay, veneer
• Abutments
• Zirconia
• Pre-milled Abutment (Ti)
• Pre-milled Abutment (CoCr)
• Cobalt-chrome
• Glass ceramic
• Lithium disilicate
• Hybrid ceramic
• Sintered metal
• Composite
• PEEK
• PMMA
• Wax

Performance

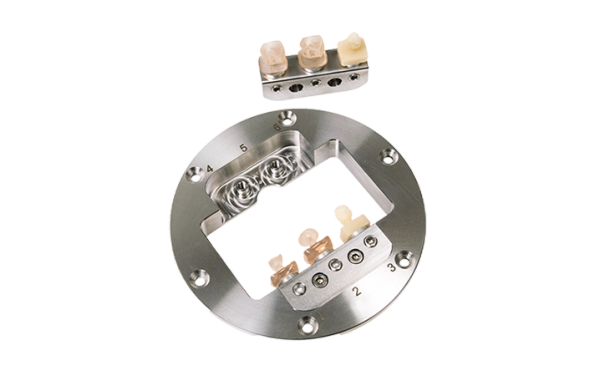

Due to machining angle of up to 360°/130° (A-axis/B-axis), the system is able to effortlessly master even the most demanding tasks. The 10-way-changer places additionally increase the flexibility of the new CORiTEC 150i series. With quick clamping system, the various holder systems can be changed quickly and easily while maintaining the same precision.

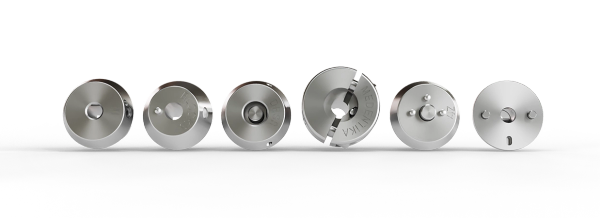

• Standard holder
• C-Clamp (optional available)
• Single holder (optional available)
• 6-fold Glass ceramic (optional available)
• Pre-milled (optional available)

CORiTEC 150i PRO

• Metal processing of CoCr blanks
• Turn-milling-grinding-processing possible
• 100.000 rpm | 860 W high-frequency spindle
• Modern, closed mono-block cast body for highest stability and precision
• Half-open blank holder "C-Clamp" (optional)
• Minimum external compressed air requirement, only 3 bar required
• High precision due to integrated temperature compensation
• No external PC required
• Integrated HD camera for online monitoring
• Minimal footprint

CORiTEC 150i dry

• Auto calibration
• Metal processing of CoCr blanks
• Turn-milling-grinding-processing possible
• 100.000 rpm | 860 W high-frequency spindle
• Modern, closed mono-block cast body for highest stability and precision
• Dry machining possible
• High precision due to integrated temperature compensation
• Short amortization period
• Minimal footprint
• Integrated HD camera for online monitoring

CORiTEC SmartControl

• Modern design and simple touch operation
• Intelligent selection of milling jobs
• Easy tool and material loading
• Auto-calibration of the machine
• Wizard guided cleaning and maintenance
• Connection to the Dental Smart Market (DSM)
• Multilingual program interface
• Automatic update function

iCAM V5

• 5-axis simultaneous machining and/or 3 + 2 machining to reach undercuts
• No annual license fees
• Unlimited term
• Fully automatic and easy operations with "Wizard Workflow"
• "ReFit"-Abutment exchange geometries
• Predefined milling strategies developed by imes-icore for all materials and applications

iCAM HD

• High degree of automation
• Fast training due to intuitive workflow
• Individual management of the scope of processing options
• Worldwide "up to date" at any time through automatic update function
• Strategies for tool path generation for the highest surface quality
• Complete collision monitoring imes-icore offers a whole package including scanner, exocad dentalCAD, iCAM CAM-software, milling and grinding tools and CORiTEC milling machines. An integrated workflow for both wet and dry milling process with minimum external compressed air (Only 3 bar required) offers process-reliable results.
