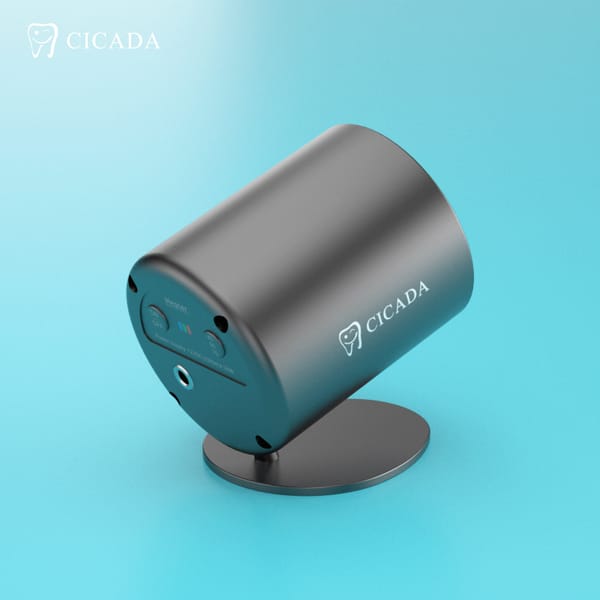

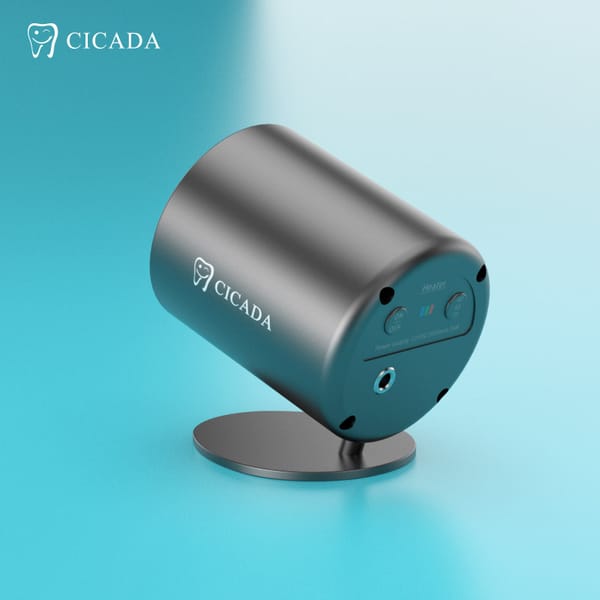

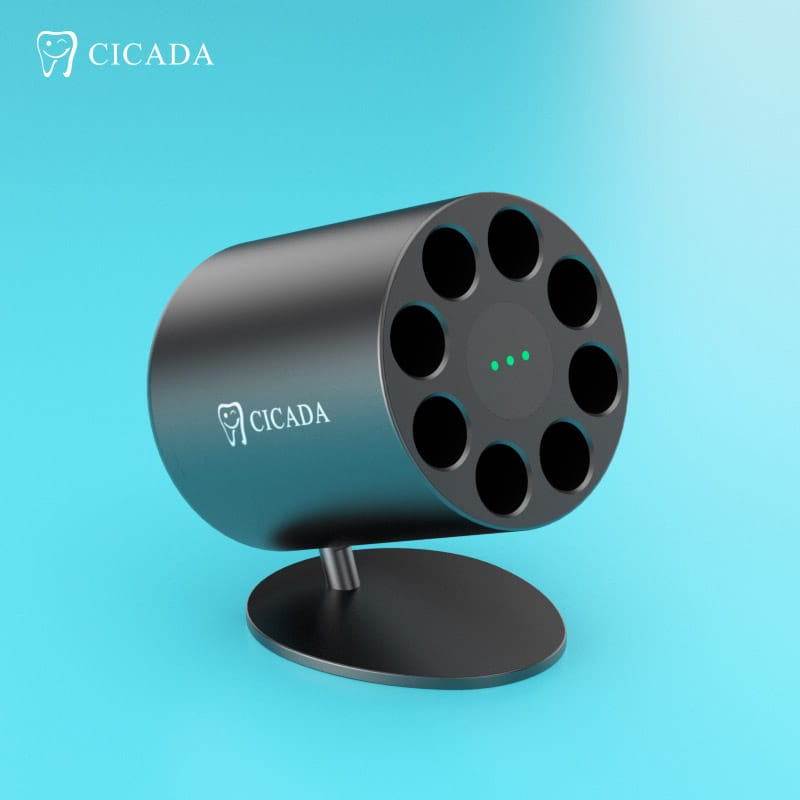

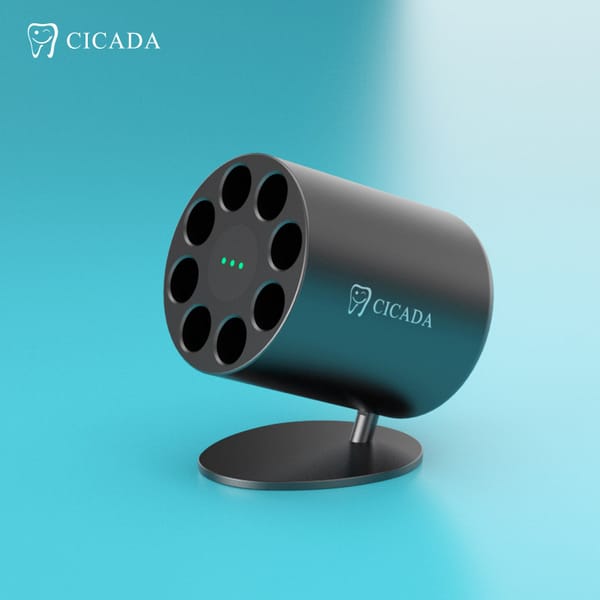

Dental Composite Heater CV-RH

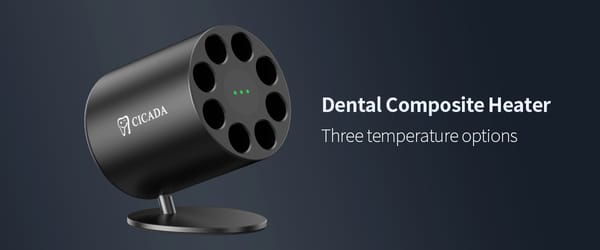

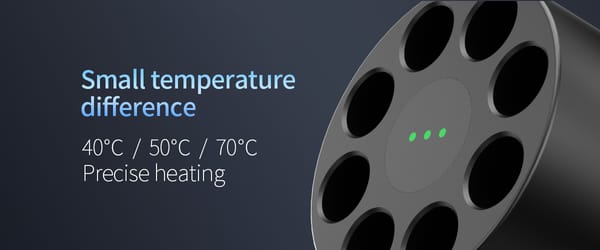

A composite heater designed for heating composite resin material improves the flow of its adhesive properties; At the same time, it can also be used to heat adhesive when used with manual equipment. A composite heater uses the precision circuit control module to heat, and control the temperature tolerance within 1 degree, According to your choice of material and personal preference temperature can be set up to 40 degrees, 50 degrees, and 70 degrees.

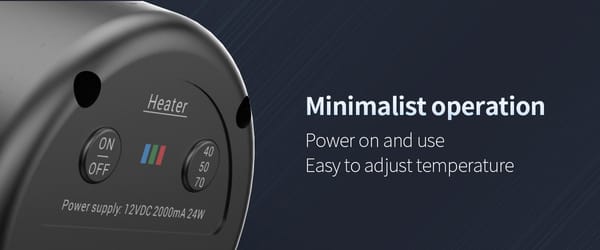

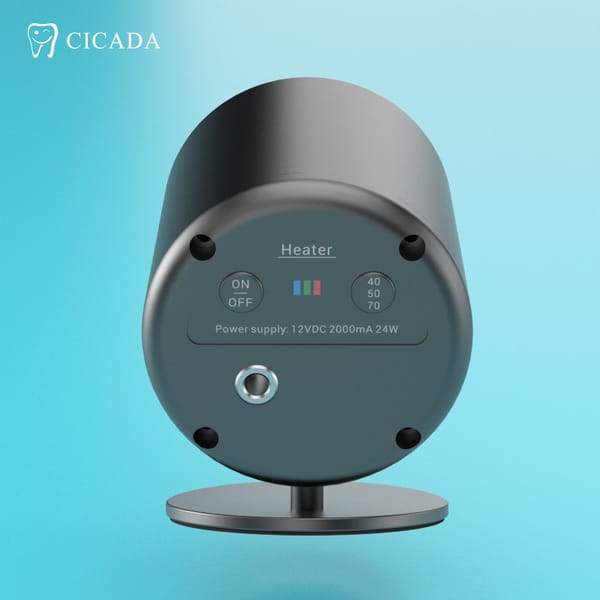

Composite Heater Consists:

• 1-heat the main body
• 2-power adapter
• 3-temperature indicator light
• 4-Turn on/off button
• 5-thermopreferendum button
• 6-power DC socket

Operation:

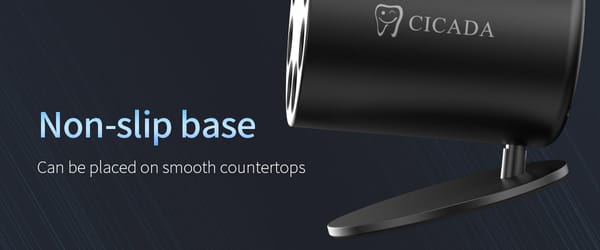

Insert the plug of the power adapter DC heating main body of the DC socket, and then insert the power adapter into an electric outlet. then three temperature indicator lights are normally on at the same time; Place the heating body on the smooth desk; 3. turn on/off the button, open the heating body, press the button once again, close the heating body, Boot the default temperature of the heating body is 40 degrees (closed heating body, three temperature indicator lights normally on at the same time); According to the temperature selection button can choose what you need, the following detailed list of temperatures can be seen; temperature indicator light color heating reaches the undefined temperature 40℃ white white LED glisten white LED light normally on 50℃ green green LED glisten green LED light normally on 70℃ red red LED glisten red LED light normally on When the indicator light glistens from normally on, temperature has reached the undefined temperature; 5. use the resin composite material of syringe inserted into a slot in the heating body, or put into the user manual equipment reach the undefined temperature;

Notice:

a. the resin composite material must tight the lid of the syringe, prevent leakage of material within the heating body; Clean and disinfect: All the parts can be cleaned with a disinfectant dishcloth. Don't put any parts immersed in any liquid cleaning and disinfection, don't disinfect under high temperature and high pressure

Fault Warning:

3 sets of indicator light glisten together: Temperature sensor failure
