Easybone Quattro

Class IIa medical device. Suitable for periodontal surgery, implant surgery and oral surgery.

Features

• BRUSHLESS MICROMOTOR with 200 to 40.000 rpm (1:1) speed range: simple and pratical functioning at every speed/torque option, and selected program
• MICROMOTOR with contra-agle anti-rotation device. Stainless steel mototr case and connection cable can be both subject to severat auto-cleavable
• TORQUE max 45 Ncm with reduction 1/16
• 33 SETTABLE REDUCTIONS
• PUMP IRRIGATION adjustable from 0 to 100%
• DIRECT ACCESS PROGRAMMABLE FUNCTIONS: speed, torque, pump, reverse, reducer hand-piece (all parameters in sequential mode)
• ERRORS – DIAGNOSTIC SYSTEM CONTROL
• ANGLE AUTO CALIBRATION upon machine's activation with a dedicated button
• DIRECT SWITCH FOR EVENTUAL PUMP'S ACTIVATION
• INSTANT VISUALIZATION OF TORQUE AND SPEED ADJUSTEMENTS, during the operative phase
• POSSIBILITY TO CHANGE THE OPERATION PARAMETERS and opportunity to memorize them or not
• 4 DIRECT-ACCESS PROGRAMS via dedicated buttons

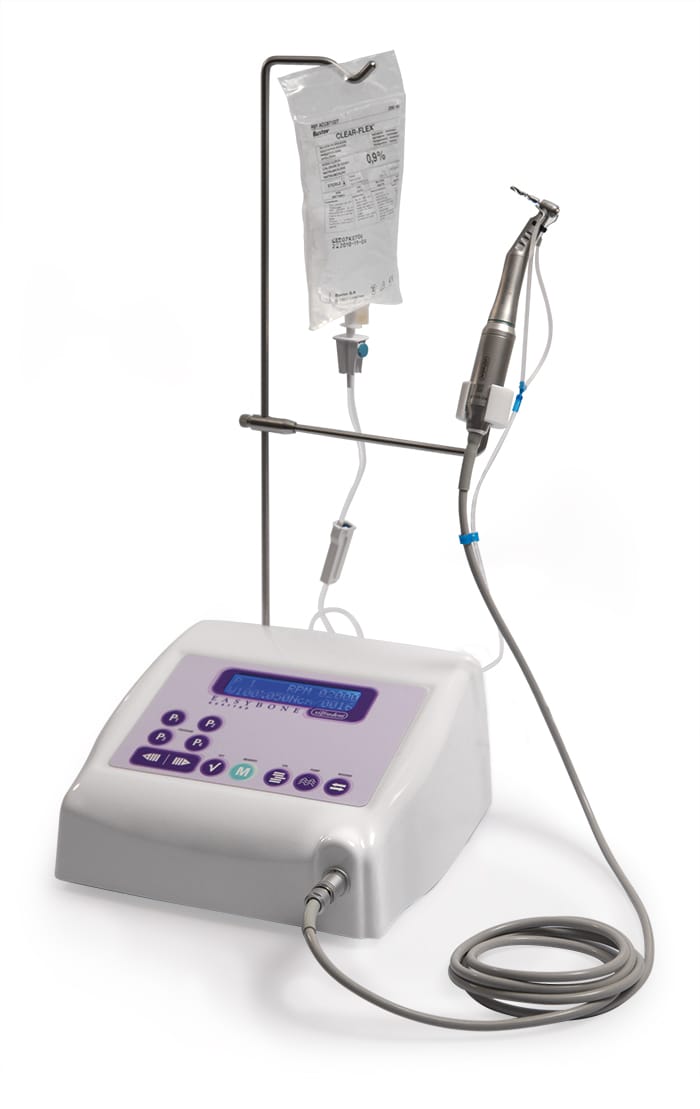

EASYBONE Quattro DI 500 with Light

• White LED Light high 4.000°K – LED lifetime: 50.000 hours
• higher visibility of the treated area
• higher precision Equipped with:
• electronic control with peristaltic pump

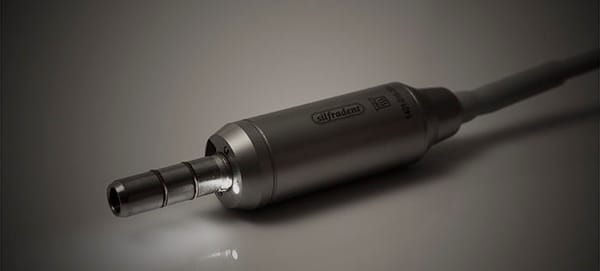

• high-speed motor with lighting
• multifunction pedal DI 500PV (optional)
• ON/OFF pedal SB 400P (optional) Equipped with:
• electronic control with peristaltic pump
• high-speed motor
• multifunction pedal DI 500PV (optional)
• ON/OFF pedal SB 400P (optional)

Display

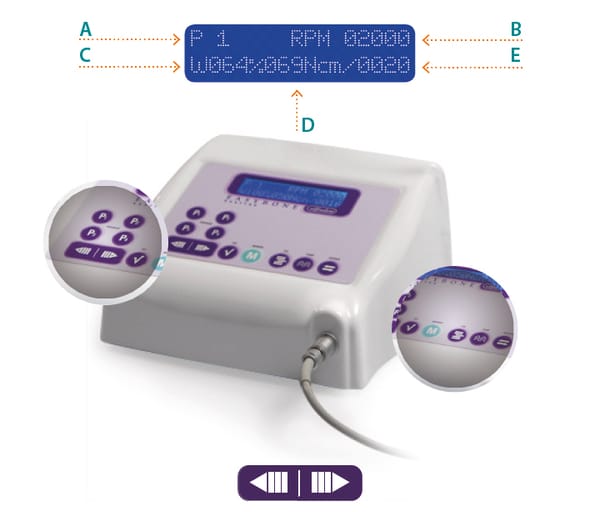

The visualized parameters are specified as follows. A – it indicates the selected function (P1, P2, P3, P4) B – it indicates the speed C – it indicates the peristaltic pump power's percentage D – it indicates the torque E – it indicates the reduction/increase of the selected parameters UP – By pushing this button the selected blinking parameter (speed, torque, reduction or pump) can be increased. DOWN – By pushing this button the selected blinking parameter (speed, torque, reduction or pump) can be decreased. It can be adjusted. Press the button CAL and the pedal until calibration OK. When the pedal is released, the forward mode is reintroduced. Pneumatic multifuctional pedal control (optional) with reverse direction. on-off pump, start speed regulation and possibility to change functions PI/P2/P3/P4. The pedal controls Micromotor start. Suitable for operating theatres and sterile environments. Pneumatic on-off footswitch (optional) suitable for operating theatres and sterile environments. Contra-angle 20:1model CI 201MX without light (optional) Contra-angle 20:1model CI 201MXLIGHT with light (optional)

• High torque resistant gears
• Push button
• Easy to disassemble and lubricate DI IMS: irrigation pipe
