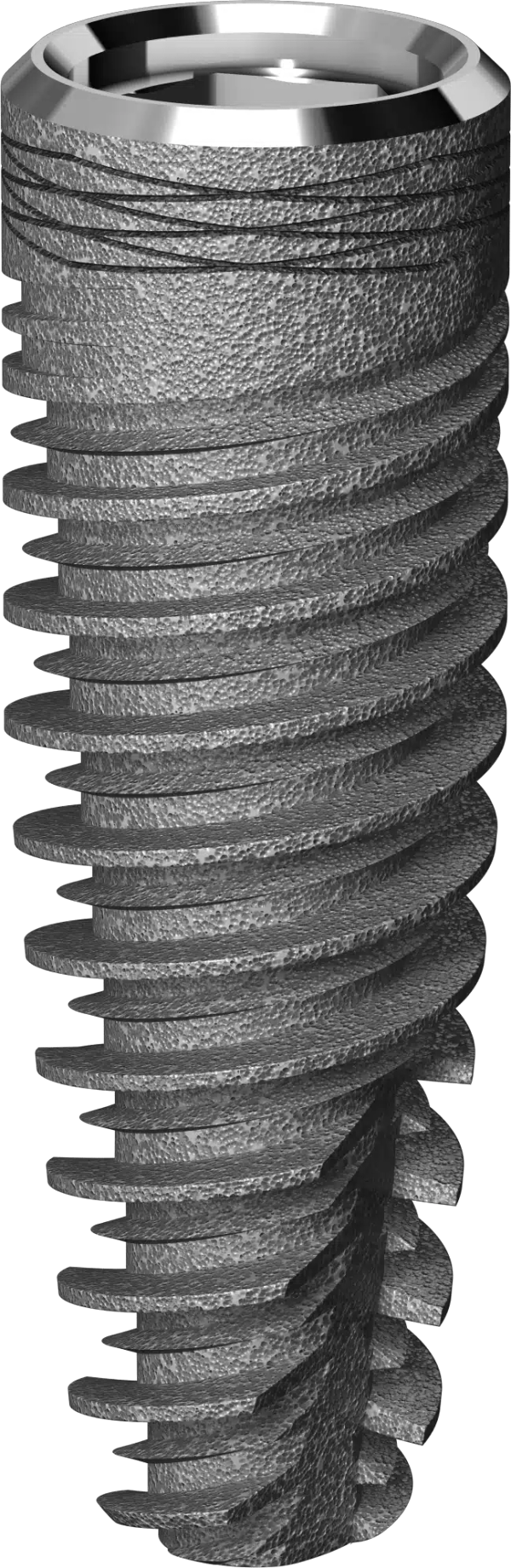

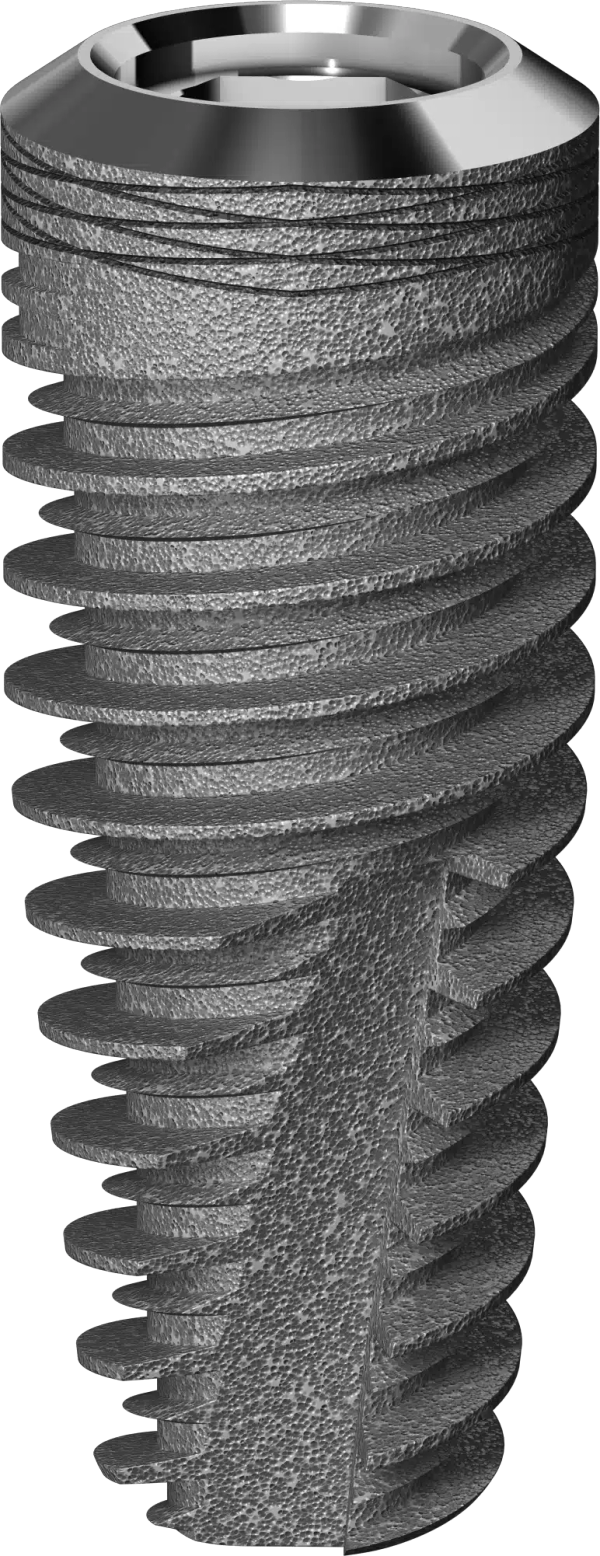

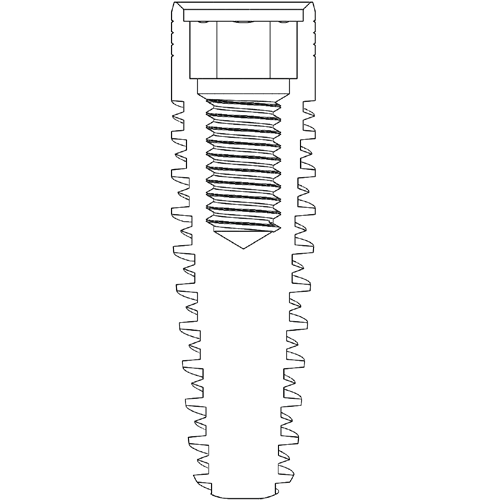

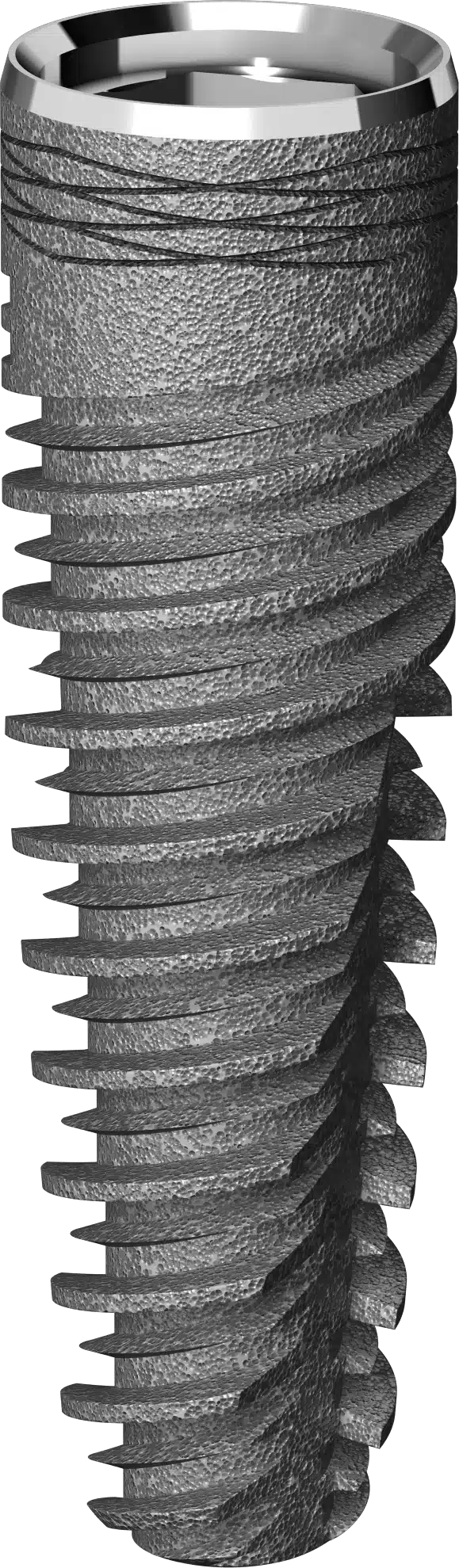

I55 Conical Implant

Technical details & Features

• A unique design for immediate loading gives maximum implant stability.
• A unique combination of aggressive and gentle threads increases the surface area, facilitating the osseointegration process.
• A narrow apex allows implant prime stability.
• The combination of cutting threads allows for minimal insertion trauma.
• Universal internal hex (compatibility with all prosthetic parts).
• Built-in platform switching.
• The restoration platform is Standard for all diameters, including Ø4.2 and above.
• All AB Dental implants undergo special calcium-phosphate sandblasting, followed by thermal and acid etching treatments for surface roughening.

Implant Range and Protocol

Ø 3.75

• Lengths: 8, 10, 11.5, 13, 16
• Final Drill Protocol
• Drill speed: 400-600
• Drill diameter: 3.7
• All drills are available with or without irrigation according to the dentist/surgeon's preferences.

Ø 4.2

• Lengths: 8, 10, 11.5, 13, 16
• Final Drill Protocol
• Drill speed: 400-600
• Drill diameter: 4
• All drills are available with or without irrigation according to the dentist/surgeon's preferences.

Ø 4.5

• Lengths: 6, 8, 10, 11.5, 13, 16
• Final Drill Protocol
• Drill speed: 300-500
• Drill diameter: 4.2
• All drills are available with or without irrigation according to the dentist/surgeon's preferences.

Ø 5

• Lengths: 6, 8, 10, 11.5, 13, 16
• Final Drill Protocol
• Drill speed: 300-500
• Drill diameter: 4.5
• All drills are available with or without irrigation according to the dentist/surgeon's preferences.

Optional Drills

Final drills for dense bone (type 1-2)

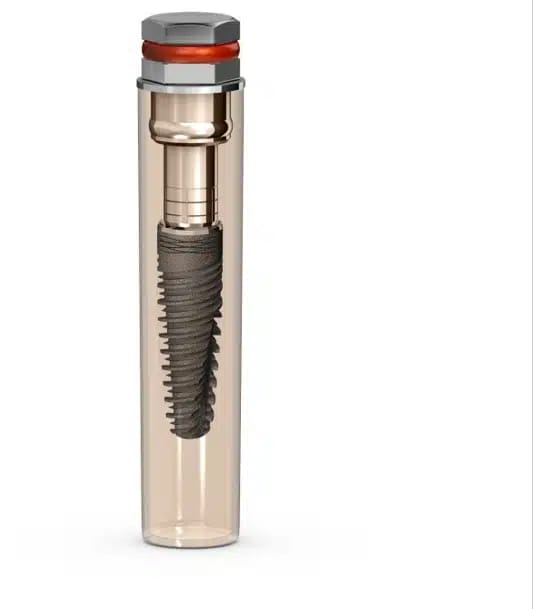

Package Content

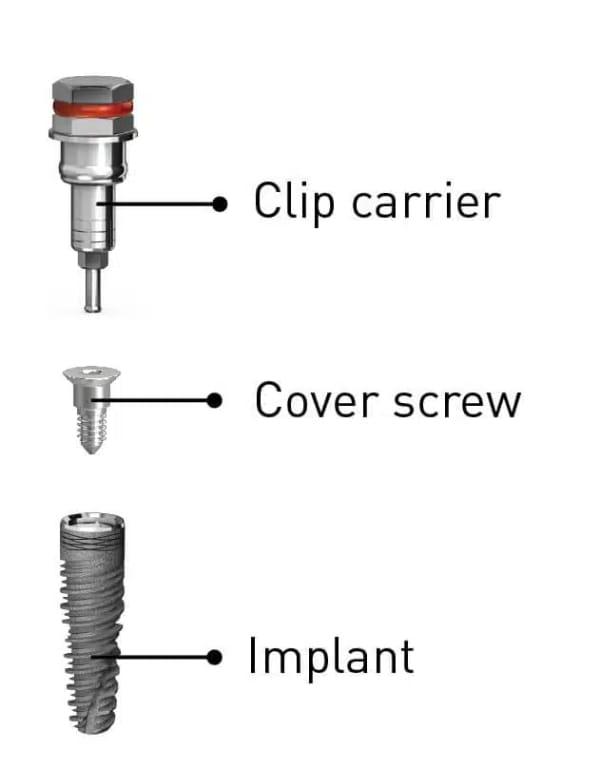

Components, inside tube, outside tube, and package included as shown.
