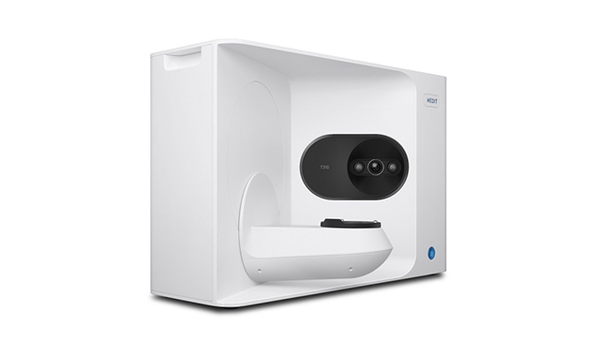

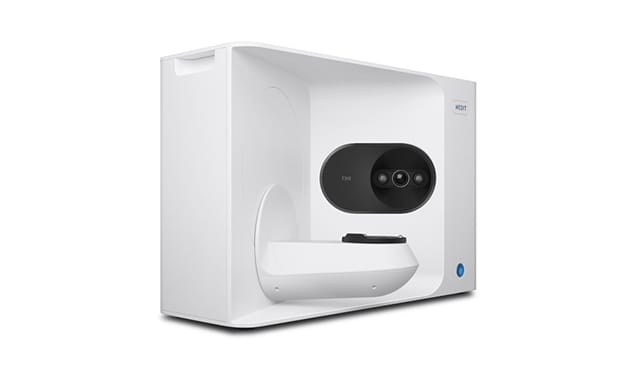

Model Scanner T310
IZEN IMPLANT CO., LTD. · #T310
Automatisch erfasst von izenimplant.com
Sie sind der Hersteller?Daten liefern
Herstellertext auf Englisch
Introduction
With high-quality hardware and optimized software, scan a full-arch in just 18 seconds
5.0MP cameras ensure high-resolution detailed scan data.
With four-camera system, it covers a wide scan area, eliminating any blind spots.
Auto-elevation
High accuracy (9-micron accuracy), following ISO 12836
Enjoy open system which allows to import / export files in STL format
Additional description
Specifications in detail:
| Specification | Detail |
|---|---|
| Resolution of camera | Mono 5.0 (MP) x 2 |
| Point spacing | 0.040mm |
| Scan area | 100mm x 73mm x 60mm |
| Scan Principle | Phase-shifting optical triangulation |
| Light source | LED, 150 ANSI-lumens, Blue LED |
| Connection | USB 3.0 B Type |
| Power | AC 100 ~ 240V (50/60Hz) |
| Accuracy (ISO 12836) | 9㎛ |
| Full arch scan speed | 18 seconds (7 cuts) |
Optional: Replica denture, Orthodontic Scanning, Flexible Scanning, Articulator Scanning
Produktinformationen
| Hersteller | IZEN IMPLANT CO., LTD. |
|---|---|
| Leistung | AC 100 ~ 240V (50/60Hz) |
| Herkunft | Korea |
| Scanbereich | 100mm x 73mm x 60mm |
| Verbindung | USB 3.0 B Type |
| Lichtquelle | LED, 150 ANSI-lumens, Blue LED |
| Zertifizierungen | CE, FDA |
| Scanprinzip | Phase-shifting optical triangulation |
