MU Angled Transepithelial with screw, G2.0mm, A17° compatible with Biomet 3i® Certain® P4.1 G15225

The Angled Transepithelial Multi-Unit® is made of Titanium Grade 5 with a mirror polished finish to prevent bacterial adhesion.

INSERTION

The transepithelial insertion is performed using the carrier and is fixed with the connection screw to the implant.

UNION

The union of the transepithelial with the prosthetic structure is made through the Multi-Unit® screw.

GEOMETRY

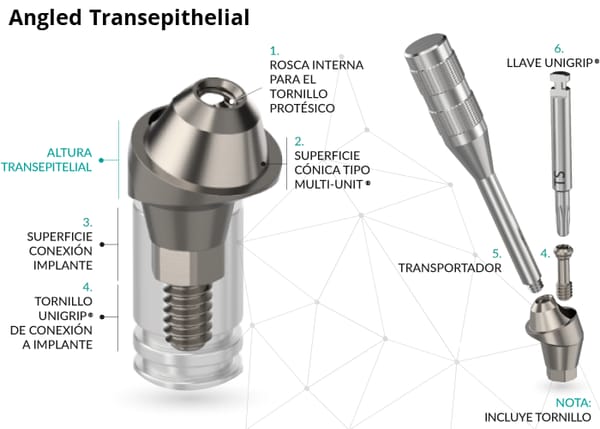

The external geometry of the transepithelial is divided into 3 parts:

• Connection surface with the implant, designed rigorously with the original measurements of the corresponding implant and offering a machining tolerance never greater than **+-**0.01mm.
• Transepithelial surface, has a height that varies between 1mm and 5mm depending on the implant model, and with two available angles of 17º and 30º.
• Connection surface with the prosthesis, has the dimensions of the Multi-Unit® connection.

NOTE

The package includes the transepithelial and the connection screw to the implant. The carrier and the connection screw to the prosthesis are not included.
