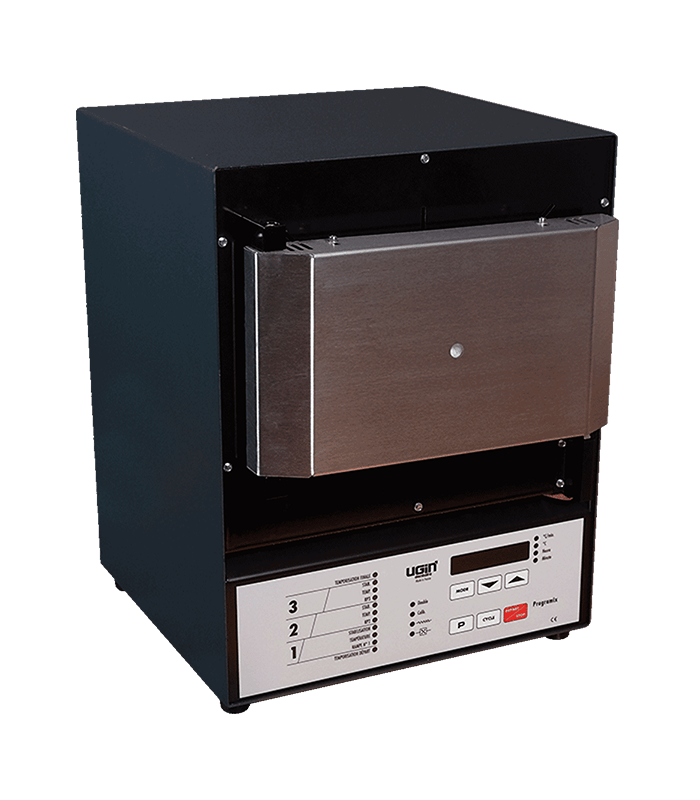

Programix 100

Burnout furnace

Burnout furnaces Programix 100 and Programix 50: two models with different capacities, and identical characteristics.

• High thermal yield.
• Compact size.
• Modular electronic panel.
• Protection against corrosion (electrogalvanized steel and epoxy paint).
• Stainless steel door.
• Monobloc muffle.

Specifications

• Maximum temperature 1050°C in constant use and 1150°C temporary peak
• 30 programs options: 20 programs with 3 levels + 10 programs with 6 levels
• 3 heating rise rates. Speed rise in temperature can be programmed between each level
• Temperature heat rise rate regulated: 1 to 150°C/min
• Temperature heat rise rate position full: 16°C/min and more (in function of the cylinders' number)
• Permanent display of furnace temperature
• Up to 100 hours planning delayed start
• Time programming: 0 to 100h
• Digital calibration
• Plug-in exhaust system: 230 V
• External dimensions (height / width / depth): 590 x 465 x 550 mm
• Weight: 56 kg
• Heating chamber dimensions (height / width / depth): 150 x 220 x 300 mm
• Number of rings (diameter 80mm, length 55mm): 8 to 12
• Maximum power consumption: 3000 W
• Supply voltage: 230 V (50/60 Hz)
