TriCAM CX560

TriCAM

The stylishly design TriCAM CX560 is integrated with a high resolution intraoral camera, a 5.6"TFT LCD screen, and X-ray film reader. Images captured from the intraoral camera or the X-ray film reader can all be saved with a simple press of a button to the microSD card. The unit can freely rotate in every angle for better viewing and operation, also it can be integrated into trolley or dental units.

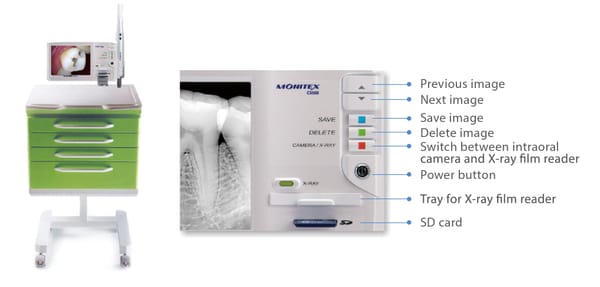

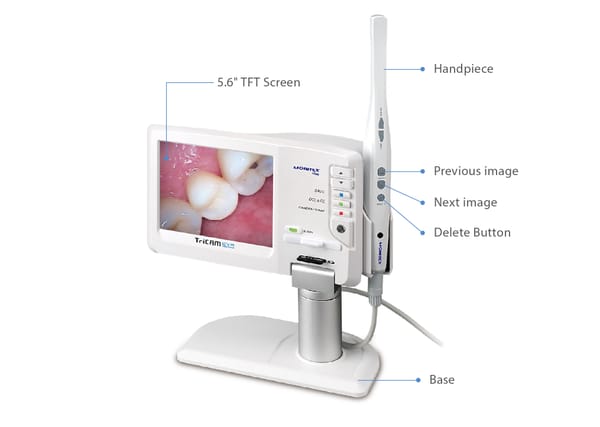

PARTS & FUNCTIONS

Can connect to another monitor via video and VGA output

Easily switch between viewing intraoral camera images and X-ray film reader images

Specifications

Intraoral Camera

Resolution: 300,000 pixels
Image Sensor: 1/4" CMOS
White Balance: Auto
Focal Length: 4 mm ~ 35 mm
Illumination Type: 6 white LED
Handpiece Dimensions: 235(L) x 22(W) x 25(H) mm
Handpiece Weight: 48.6 g

Monitor

Image Output: MicroSD, VGA, Video Display: 5.6" TFT LCD Resolution: 640 x 480 Power Input: AC 100~240V, 50/60 Hz Power Output: DC 5V---2A Dimensions: 235(L) x 102(W) x 212(H) mm Weight: 1.27 kgs
